dassoXTR Fused Bamboo Deck Plank and Deck Tiles are created to fit multiple brands of pedestal system. Each pedestal system is designed for easy installation and suitable to be used in a wet environment like rooftop or poolside.
We provide you with the option of Eurotec Pedestal System to simplify your ordering process.
Here is what you should be considering when deciding which pedestal parts to get;
- Is your base leveled or sloped?
If your base is leveled, then all you need is a membrane to cushion the pedestal to your base. If your base is sloped, then you will need an adjustable base plate to compensate so that your pedestal is vertically leveled.
- What are you using for the deck surface: deck planks or deck tiles?

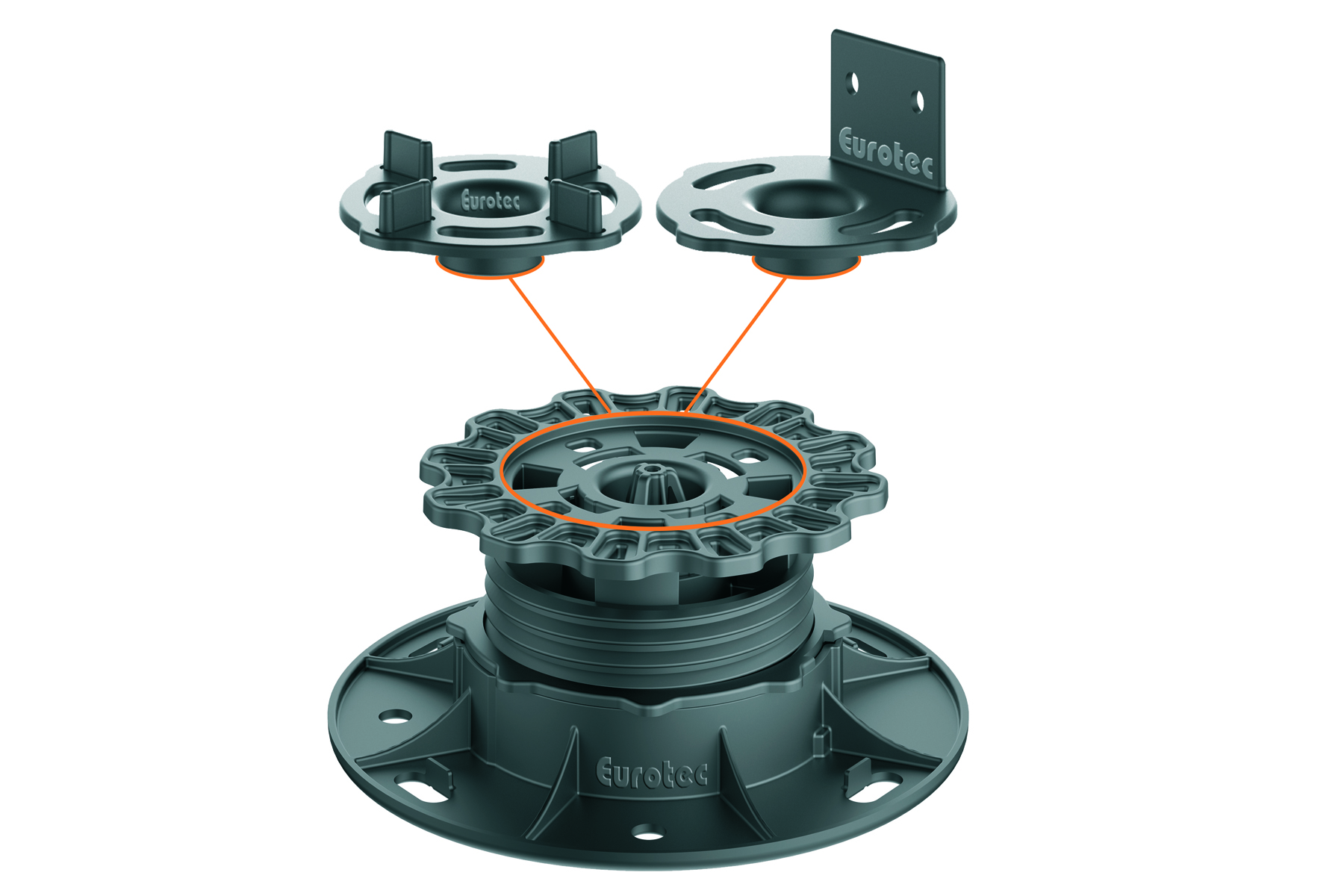

Each of the pedestals come with both types of connectors, one for securing the joist to the deck plank and the other is to connect to deck tiles.
- How high is your planned deck?
In the case of deck tiles, if your planned deck height is 20” (from base to deck surface), your pedestal height should be, deck height 20” – tiles thickness 1-1/2” = pedestal height 18-1/2”. For this height, you will need 1 piece of DS-PRO-XL, 3 pieces of DS-Ex10, and 1 piece of DS-Ex4, which is 6-5/8” + 3 x 3-7/8” + 1-5/8” = 19-7/8”.
- A deck plank will require a joist. How high is the joist?
If you are using a deck plank, then you will need to install the joist on top of the pedestal as a connector between pedestal to the deck plank. The joist can be treated wood or an aluminum joist. In this case, you will have to minus the joist height from the pedestal height. For examples; deck height 20” – tiles thickness 1-1/2” – 3-1/2” = pedestal height 15”.
DS-PRO-XS-INC954061-Assembly Height: 55/64" - 13/16" - 20/box
DS-PRO-S-INC946070-Assembly Height: 1 1/8" - 2 1/8" - 10/box
DS-PRO-M-INC946071-Assembly Height: 2 1/8" - 3 1/4" - 10/box
DS-PRO-L-INC946072-Assembly Height: 2 3/4" - 4 5/8" - 10/box
DS-PRO-XL-INC649079-Assembly Height: 2 7/8" - 6 5/8" - 10/box
DS-Ex4-40-INC946074-Assembly Height +1 5/8" - 40/box
DS-Ex10-INC946073-Extension Ring +10 - Assembly Height: +3 7/8" - 10/box
DS-BaseplatePro-XXS-INC954021-Base Plate for PRO-XXS-Extended PRO-XXS with 13/64" - 50/box
DS-PRO-XXS-INC954020-Assembly Height: 25/64" - 19/32" - 50/box
